MPLAB ICD 3 In-Circuit Debugger
|
Part Number: DV164035
|
|
MPLAB¢ç ICD 3 In-Circuit Debugger System
is Microchip's most cost effective high-speed hardware debugger/programmer for
Microchip Flash Digital Signal Controller (DSC) and microcontroller (MCU)
devices. It debugs and programs PIC¢ç Flash microcontrollers and
dsPIC¢ç DSCs with the powerful, yet easy-to-use graphical user
interface of MPLAB Integrated Development Environment (IDE). The MPLAB ICD 3
In-Circuit Debugger probe is connected to the design engineer's PC using a
high-speed USB 2.0 interface and is connected to the target with a connector
compatible with the MPLAB ICD 2 or MPLAB REAL ICE systems (RJ-11). MPLAB ICD 3
supports all MPLAB ICD 2 headers. |

|
MPLAB ICD 3 has improved
speed as compared with MPLAB ICD 2 and supports most Microchip PIC and dsPIC
devices.
See these videos for an overview and for getting
started with MPLAB ICD 3
Features
- Real-time Debugging - MPLAB ICD 3 In-Circuit Debugger is designed to
support high-speed processors running at maximum speeds, allowing embedded
engineers to debug applications on their own hardware in real time.
- Ruggedized Probe Interface - Protection circuitries are added to the
probe drivers to guard the probe kit from power surges from the target. Vdd and
Vpp voltage monitors protect against over-voltage conditions, and all lines have
over-current protection. The unit can provide power to a target (up to 100 ma).
- Microchip Standard Connectivity - MPLAB ICD 3 In-Circuit Debugger
employs a standard Microchip debugging connector (RJ-11).
- Portable, USB-powered and RoHS-Compliant - Housed in a small
(3.7" x.8") and attractive enclosure, the MPLAB ICD 3 In-Circuit Debugger is
powered by the USB port, so an external power adapter is not required. MPLAB ICD
3 In-Circuit Debugger is CE and RoHS-compliant.
- High Speed Programming - Fast programming allows both quick firmware
reload for fast debugging and for in-circuit re-programming. Programming times
are improved up to 15x over MPLAB ICD 2.
- Low Voltage Emulation - MPLAB ICD 3 supports target supply voltages
from 2.0 to 5.5 volts.
- Test Interface Module - Included with every MPLAB ICD 3 is a test
module to test I/O lines to confirm the unit is working properly.
- Ease of Maintenance and Feature Upgrade - Adding new device support
and advanced features to MPLAB ICD 3 In-Circuit Debugger is as simple as
installing later versions of the MPLAB IDE, downloadable free. MPLAB ICD 3
In-Circuit Debugger is field upgradeable through a firmware download from MPLAB
IDE.
- Low Cost - MPLAB ICD 3 In-Circuit Debugger breaks the price barrier
for a complete and advanced in-circuit debugger, offering new ways to interact
with and debug applications at a fraction of the cost of traditional emulator
systems.
- Powerful Debugging - High powered debugging with MPLAB IDE,
supporting multiple breakpoints, stopwatch, source code file debugging in
MPLAB¡¯s editor for quick program modification/debug.
Products
Supported MPLAB ICD 3 In-Circuit Debugger/Programmer supports
most Flash PIC MCUs
and dsPIC DSCs. For the current list of supported parts, review
the latest release notes located in the MPLAB IDE and attached below. The firmware is continually
being updated to add support for new devices. As new device firmware is
released, it can be
downloaded with the
latest version of MPLAB IDE, free of
charge. |
ICD3 Á¦Ç° ±¸¸Å½Ã Ãßõ Á¦Ç°
ICD2 /

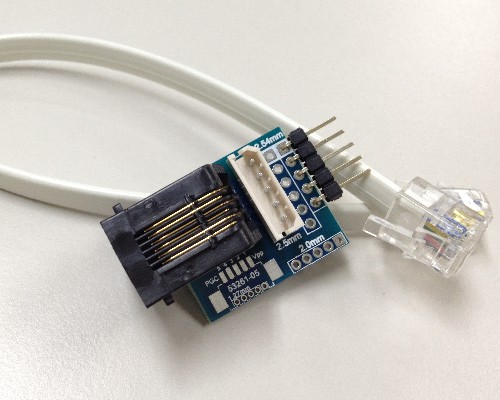

ICD3 Pin Converter <-- Á¦Ç° »ó¼¼Á¤º¸ Ŭ¸¯!
